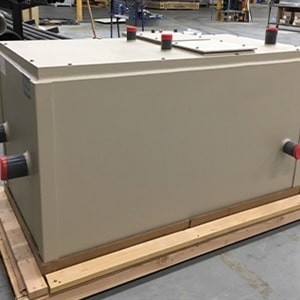

Rectangular Tank

You need a custom-designed rectangular tank that will perform better than concrete or metal. Orenco Composites can help. Our rectangular fiberglass-reinforced polymer (FRP) tanks are often the most cost-effective, long-term solution for many industrial process requirements, outperforming other materials. To meet your project needs, we manufacture single-piece tanks with capacities from 300 gallons to 50,000 gallons.

These turn-key rectangular tank products are molded using vacuum infusion, providing a high-strength, seamless vessel. The unique foam-core structural design provides integral insulation (R24 or more) and strong, stiff walls — strong enough that tanks can be buried to grade or sit above ground.

Orenco Composites FRP tanks can be configured with multiple baffles, weirs, slopes, access covers, and hatches. In addition, tanks can be fully outfitted with  safety railings, ladders, air diffusers, scum baffles, slide-rail systems, pumping systems, filters, and many other custom internal components. Our tanks also come fitted with lifting and mounting mechanisms. Contact us to see how we can help with your next project — from design to delivery.

Applications

  • Industrial wastewater processes
  • Various municipal wastewater treatment processes (MBR, MBBR, MABR, SBR)
  • Oil/water separators

Sizes

  • Volume: from 300 gallons to 50,000 gallons (1.1 m³ to 189.3 m³)
  • Widths: 7.5′, 8′, 10′, and 12′ (2.3 m, 2.4 m, 3.0 m, 3.7 m)
  • Lengths: up to 50′ (15.2 m)
  • Heights: up to 12′ (3.7 m)
  • Custom sizes available

Features

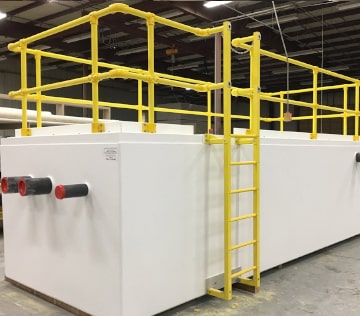

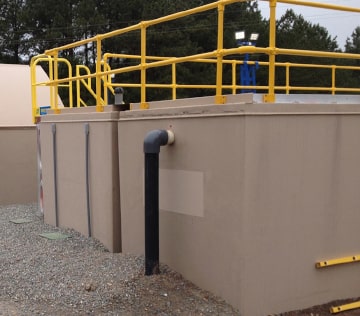

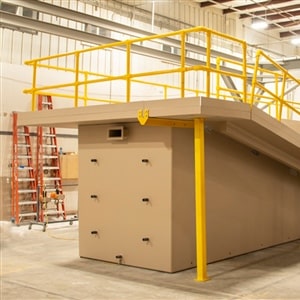

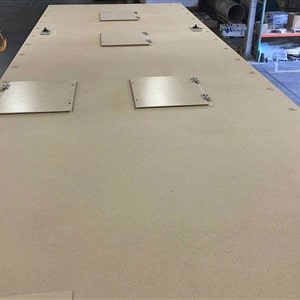

Rectangular fiberglass tanks can be equipped with railings, catwalks, and ladders. DuraFiber FRP tanks can be customized with access hatches.
  • Corrosion-free
  • Permanent or temporary installation

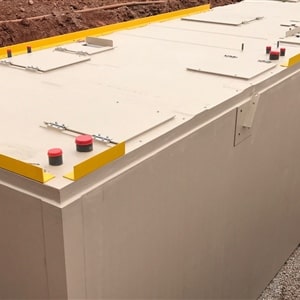

  • Above-ground or buried-to-grade installation

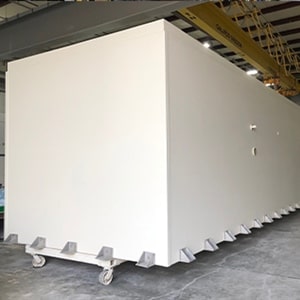

  • Single-piece, closed-molded vessel
  • Insulated up to R-48, depending on application
  • Internal tank coatings
  • Varied resins, based on application

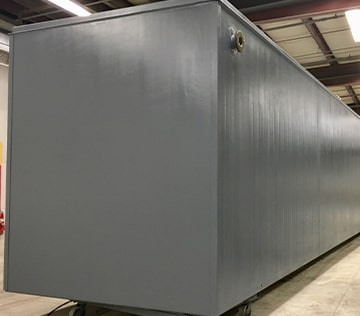

  • Custom colors
  • Value-engineered vessel

Options

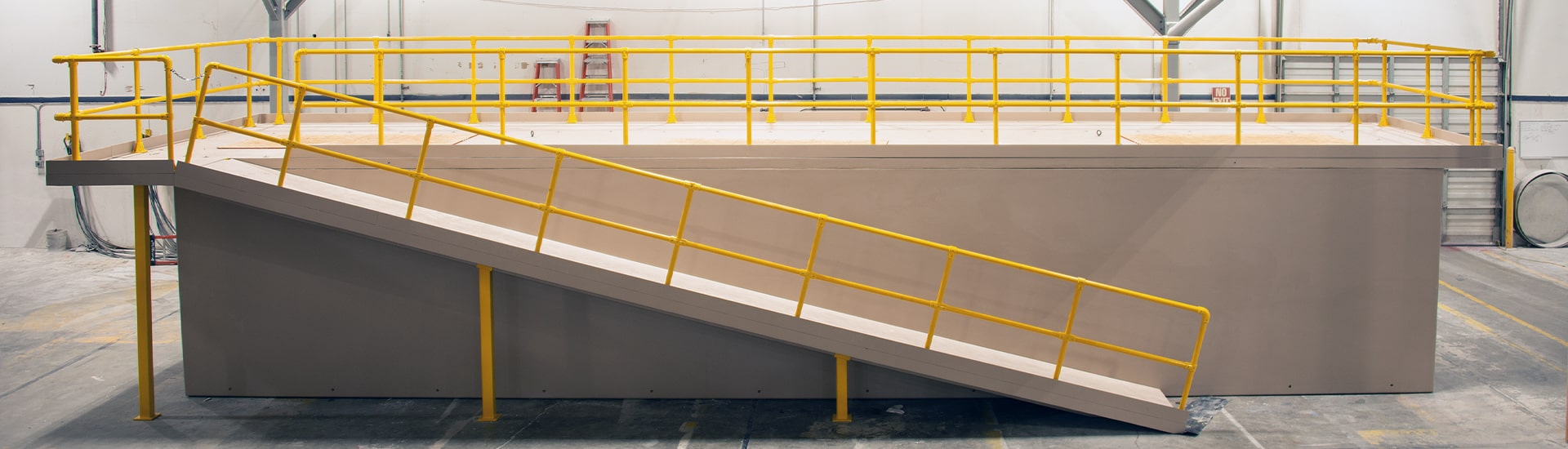

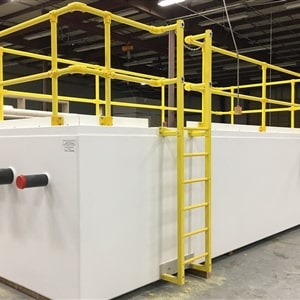

DuraFiber FRP composite tanks can be customizes with ladders and railings.
  • Safety railings
  • Ladders

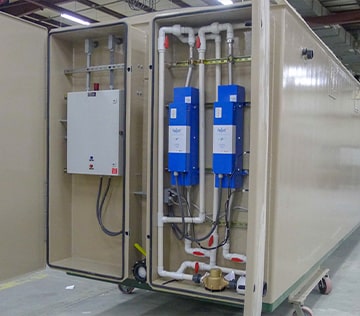

  • Integrated control rooms

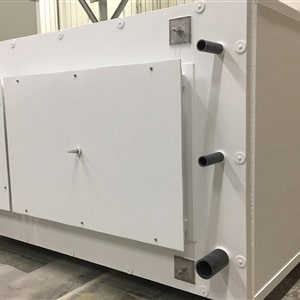

  • Access covers and hatches
  • Baffles
  • Slide rail systems
  • Effluent pump and filter systems
  • Open top with grating

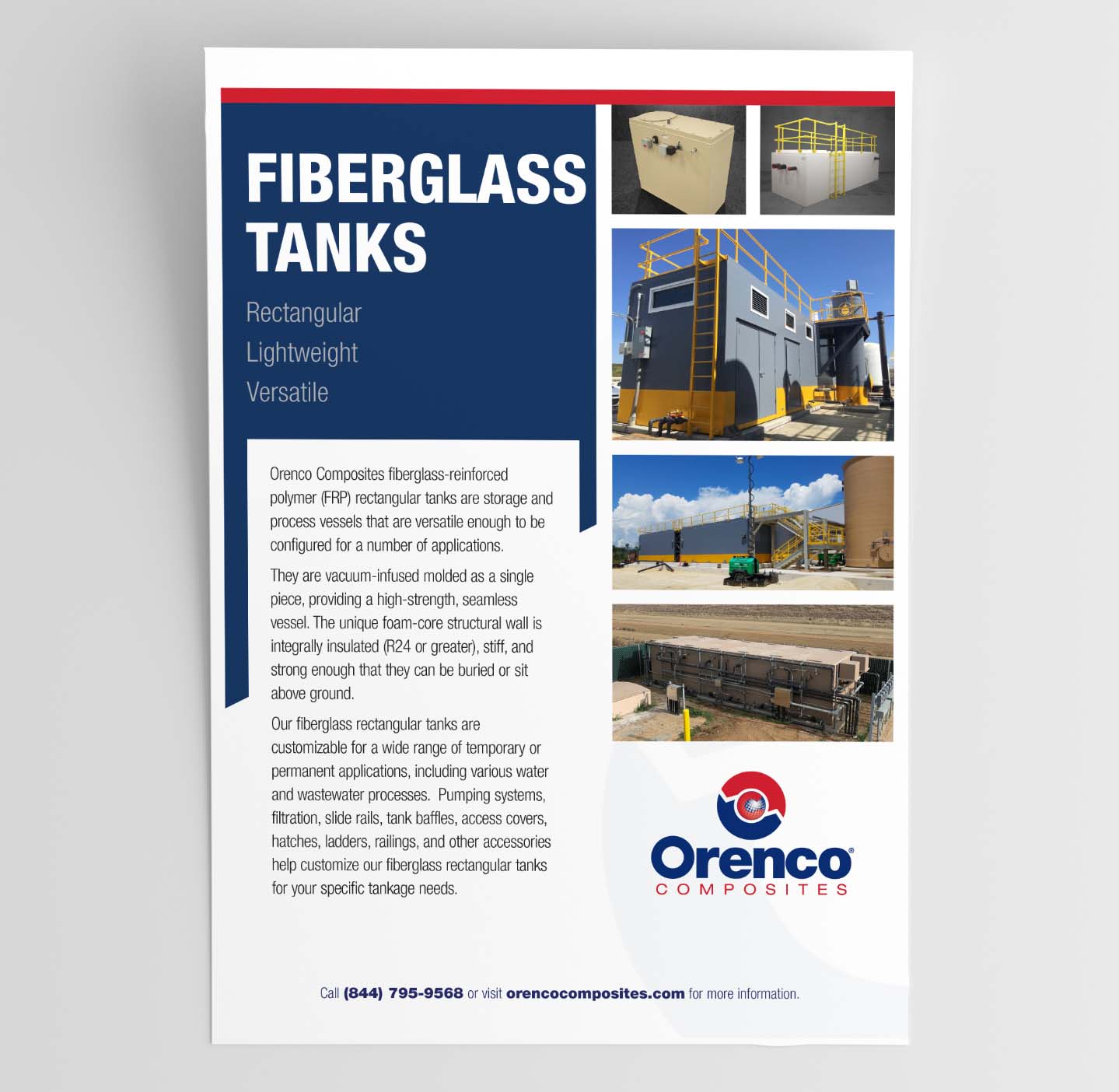

Document Resources

Here are some documents to get you started.

Featured

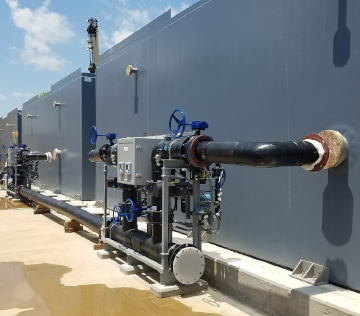

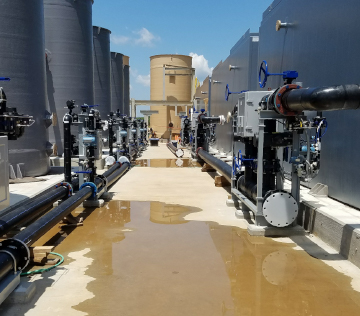

Project Profile:
Industrial Wastewater

The client needed a rectangular tank to optimize their industrial treatment process. Working closely with the client, we designed an appropriate solution that met their specs and is scalable for future project needs.



RECTANGULAR TANKS

The fiberglass-reinforced DuraFiber tanks contain baffles, weirs, nozzles, and other customer-specific features.

Features
  • 10’ wide x 11’ high x 32’ long
  • Custom colors
  • Vinyl ester resin
  • Custom cover with grading
Process

The tank was molded using a vacuum-infusion process, which adds to its strength.
